SA 050
SGD 99.25
Inlet I.D. (A)
Body Length (B)
Inch
mm
mm
5"
127
178

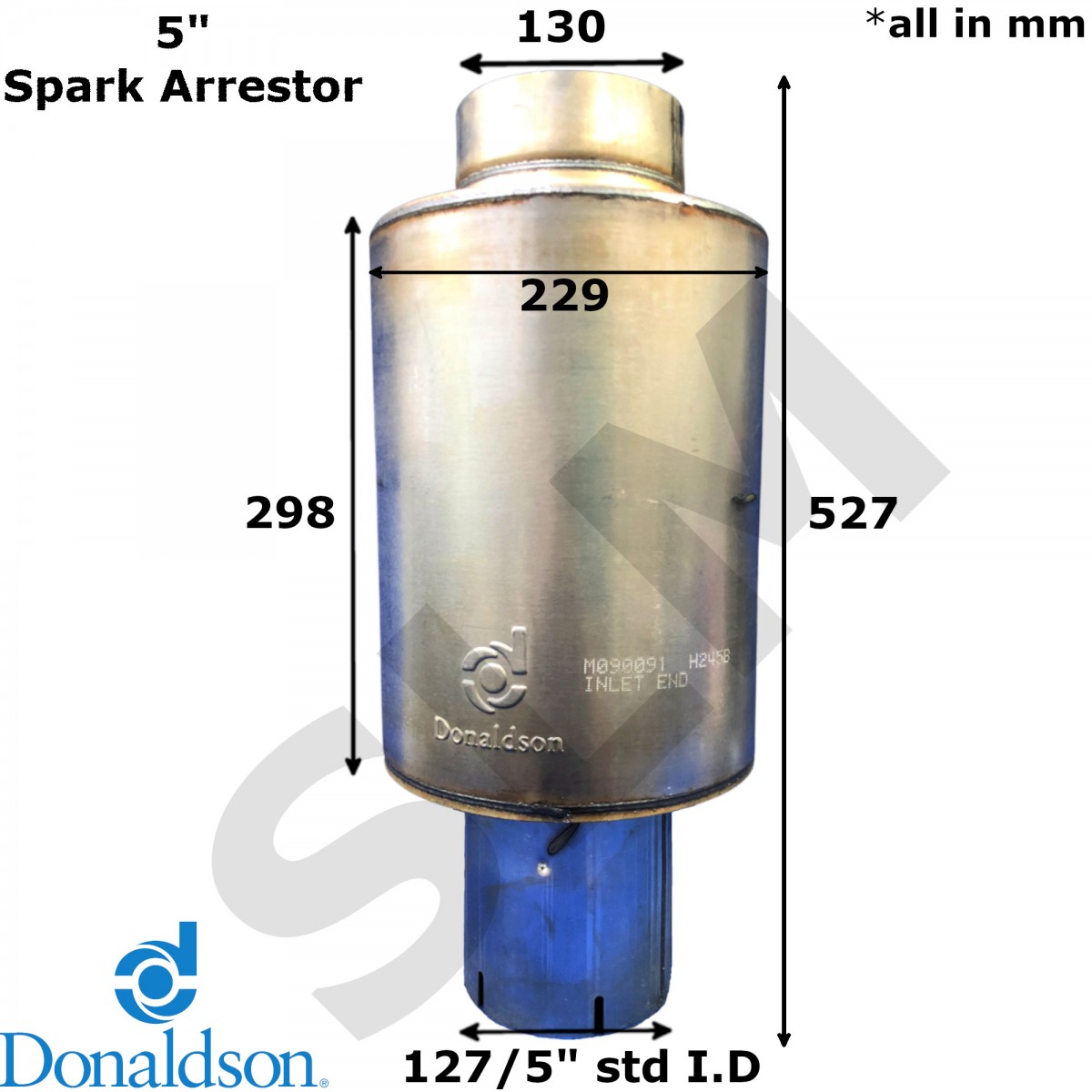

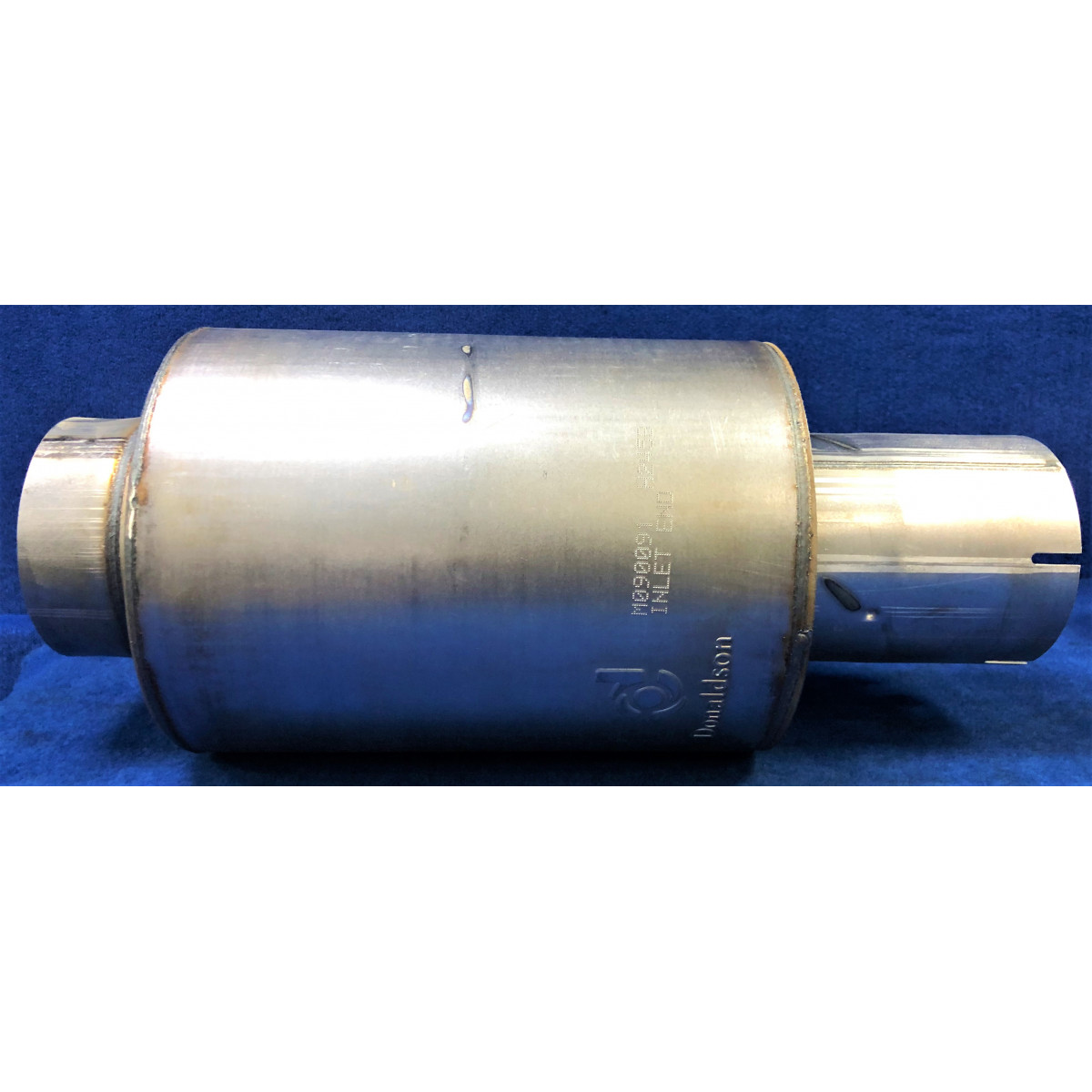

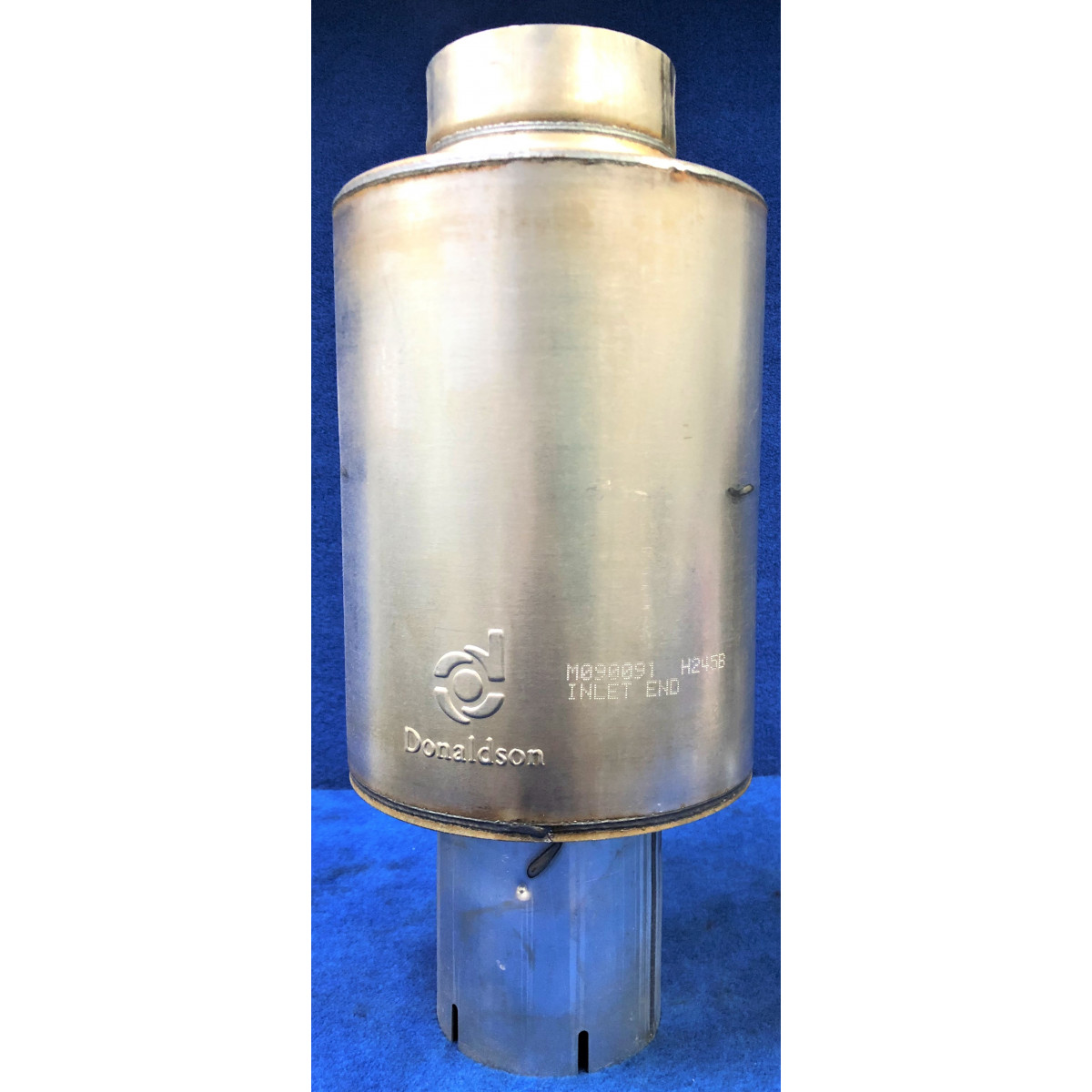

Donaldson Spark Arrestor 5" / 127mm M090091
M090091

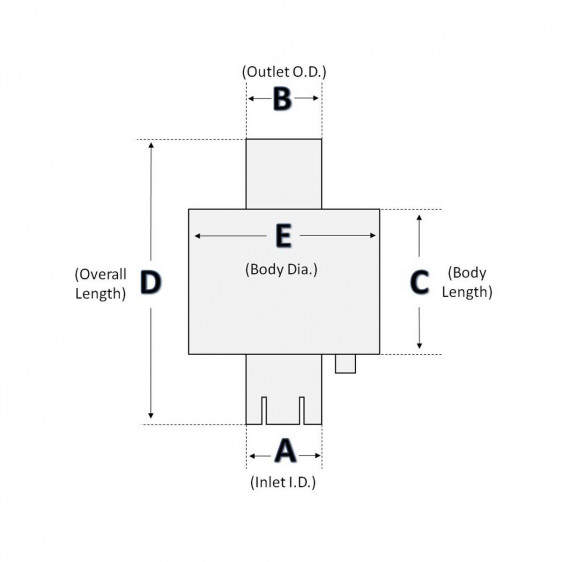

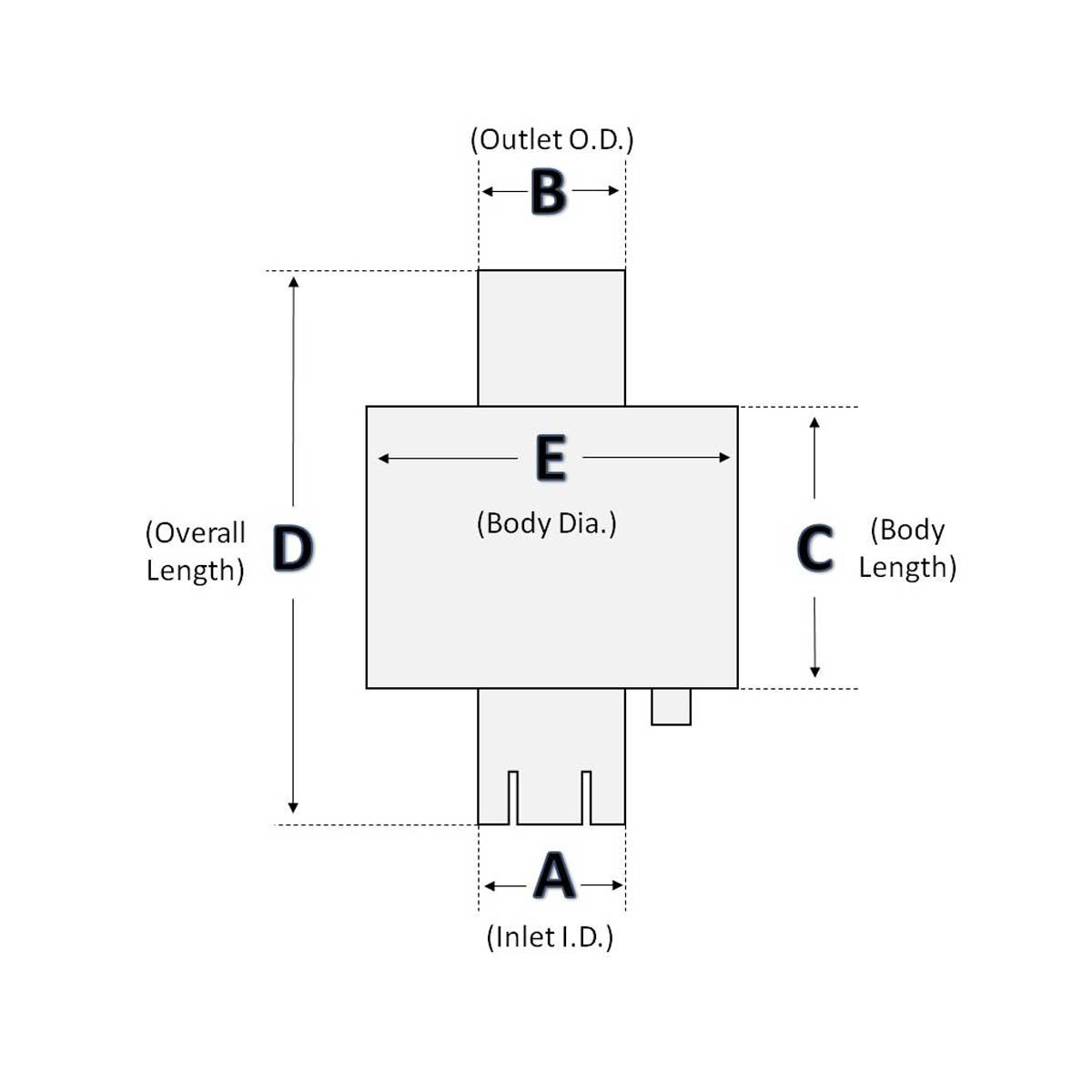

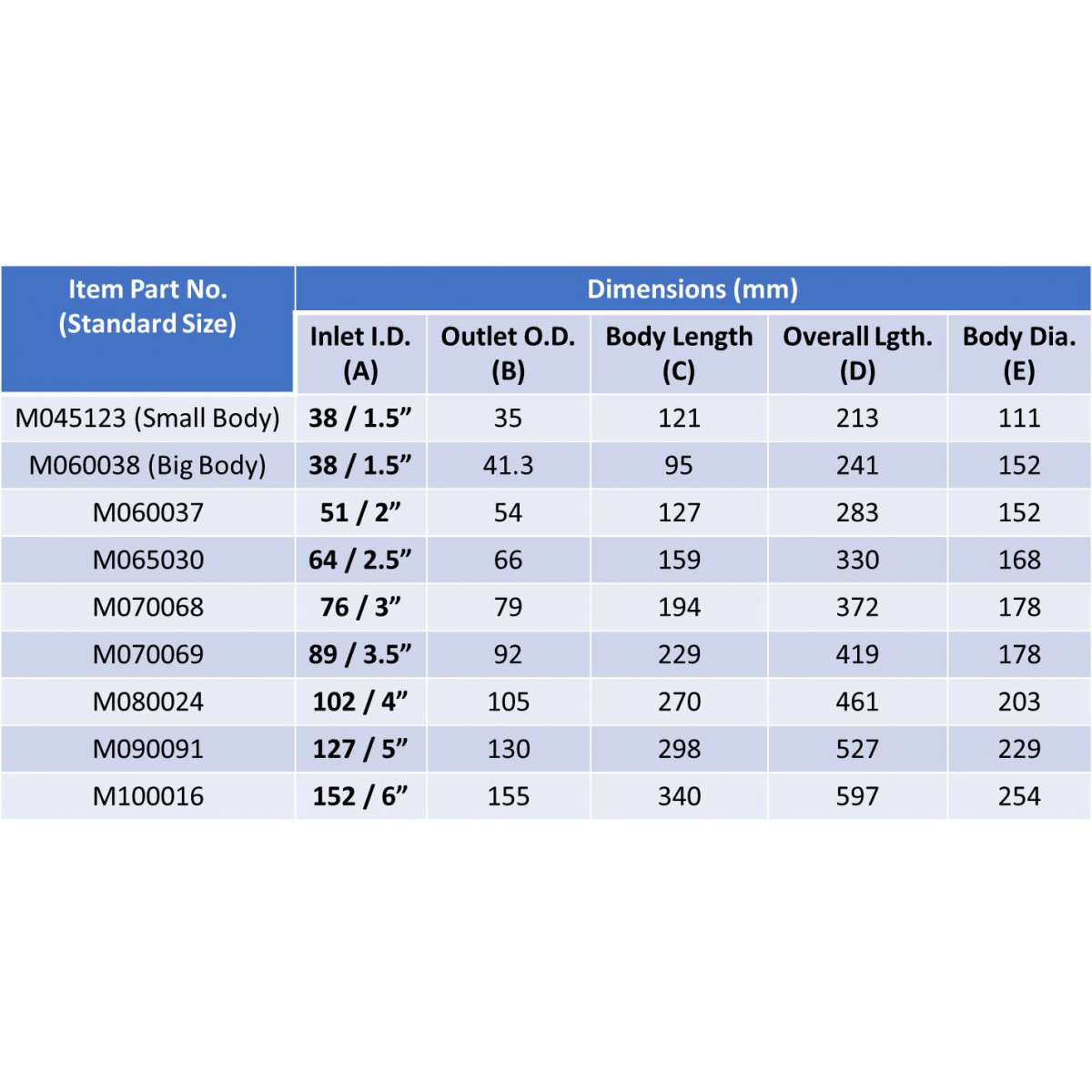

| Donaldson Part No. (Standard Size) | Dimensions (mm) | ||||
| Inlet I.D. | Outlet O.D. | Body Length | Overall Lgth. | Body Dia. | |
| (A) | (B) | (C) | (D) | (E) | |
| M090091 | 127 / 5" | 130 | 298 | 527 | 229 |
SGD 729.90
Brand: Donaldson
Donaldson Spark Arrestor 5" / 127mm M090091. Comes complete with appropriate sized U-Clamp & Certificate of Approval.

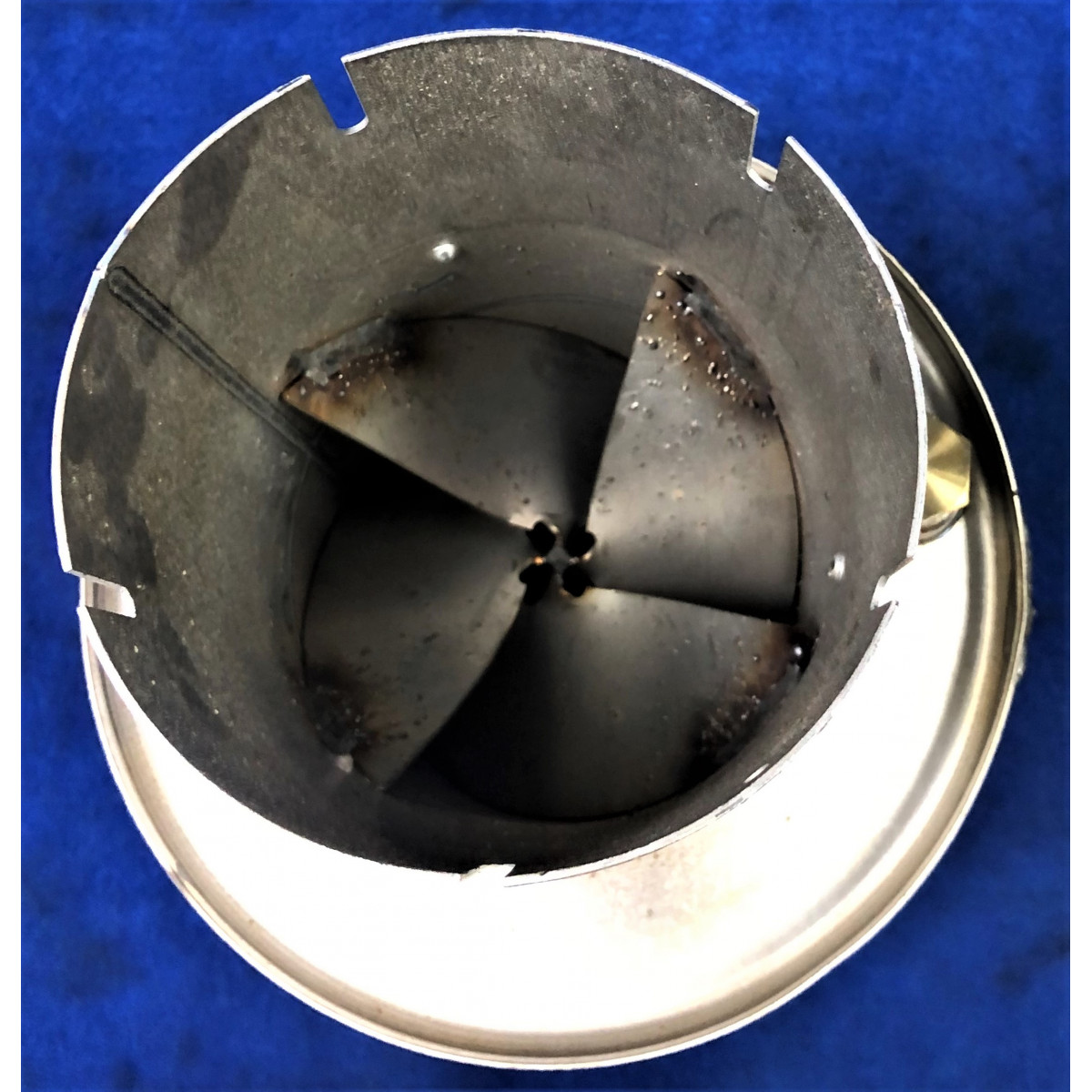

Traps hot exhaust particles expelled in exhaust systems, crucial for fire prevention. Suitable for use in Jurong Island and Changi Airport or areas with high fuel content.
Colour: Silver
Please check body dimension of spark arrestor before ordering as there may be space limitation at the installation site. Any modified items (inlet size) will not be eligible for refundable terms.
Other common search names:
Spark Arrestor with Certificate
Certified Spark Arrestor
Approved Spark Arrestor
Donaldson Spark Arrestor
All names & logos used are registered trademarks of the original equipment manufacturers and are used solely for reference purposes only.
Related products
RC P270541
SGD 43.15
Dimensions (mm)
Fits Spark Arrestor Model
O/L (A)
I.D. (B)
Height (C)
M090091
267
127
72
Fits Pipe O.D. 127mm / 5"
