DS 16mm
SGD 2.80

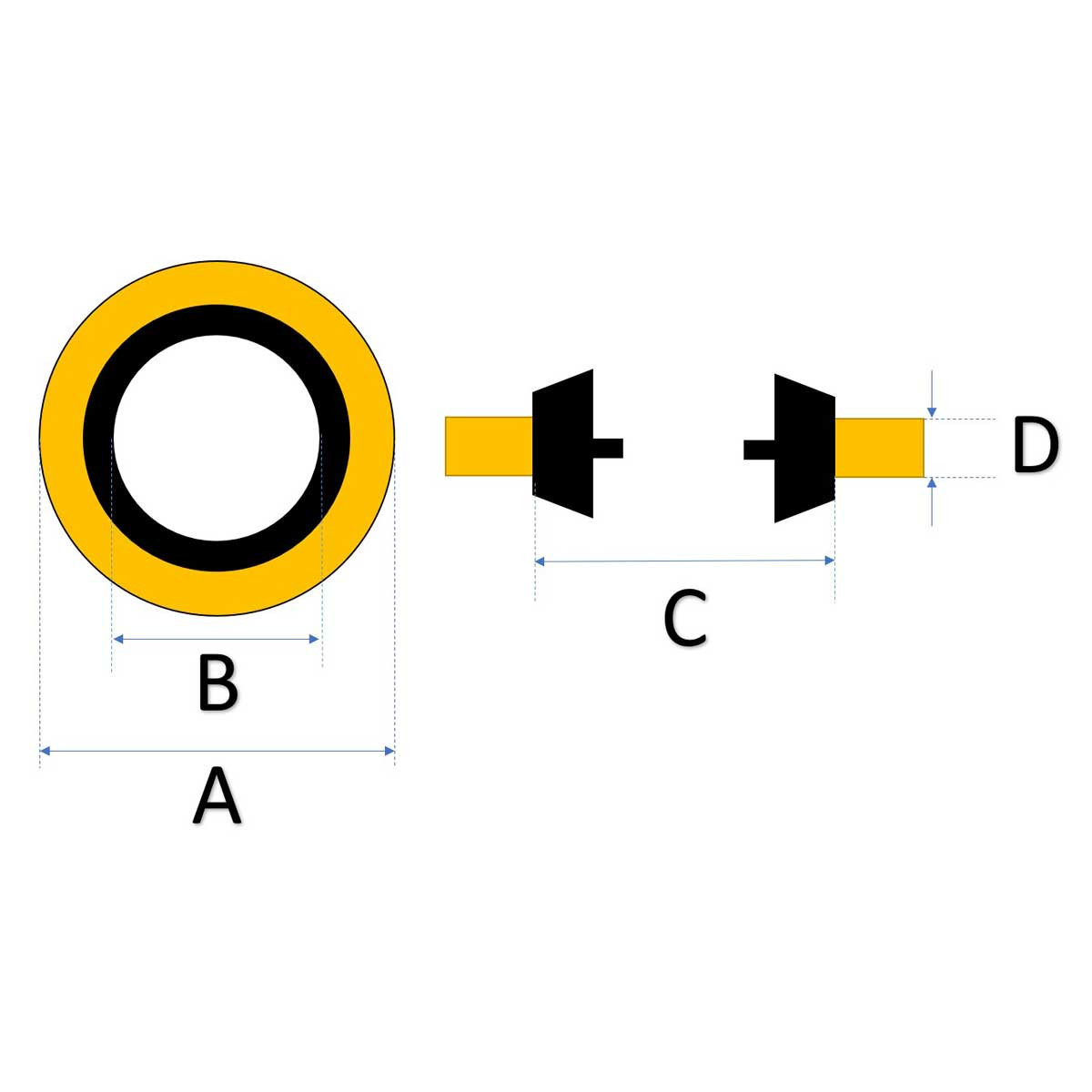

Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
22
16.5
18.4
2

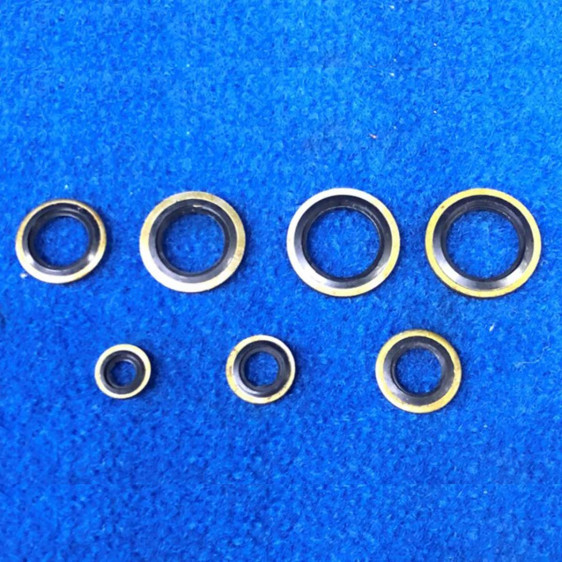

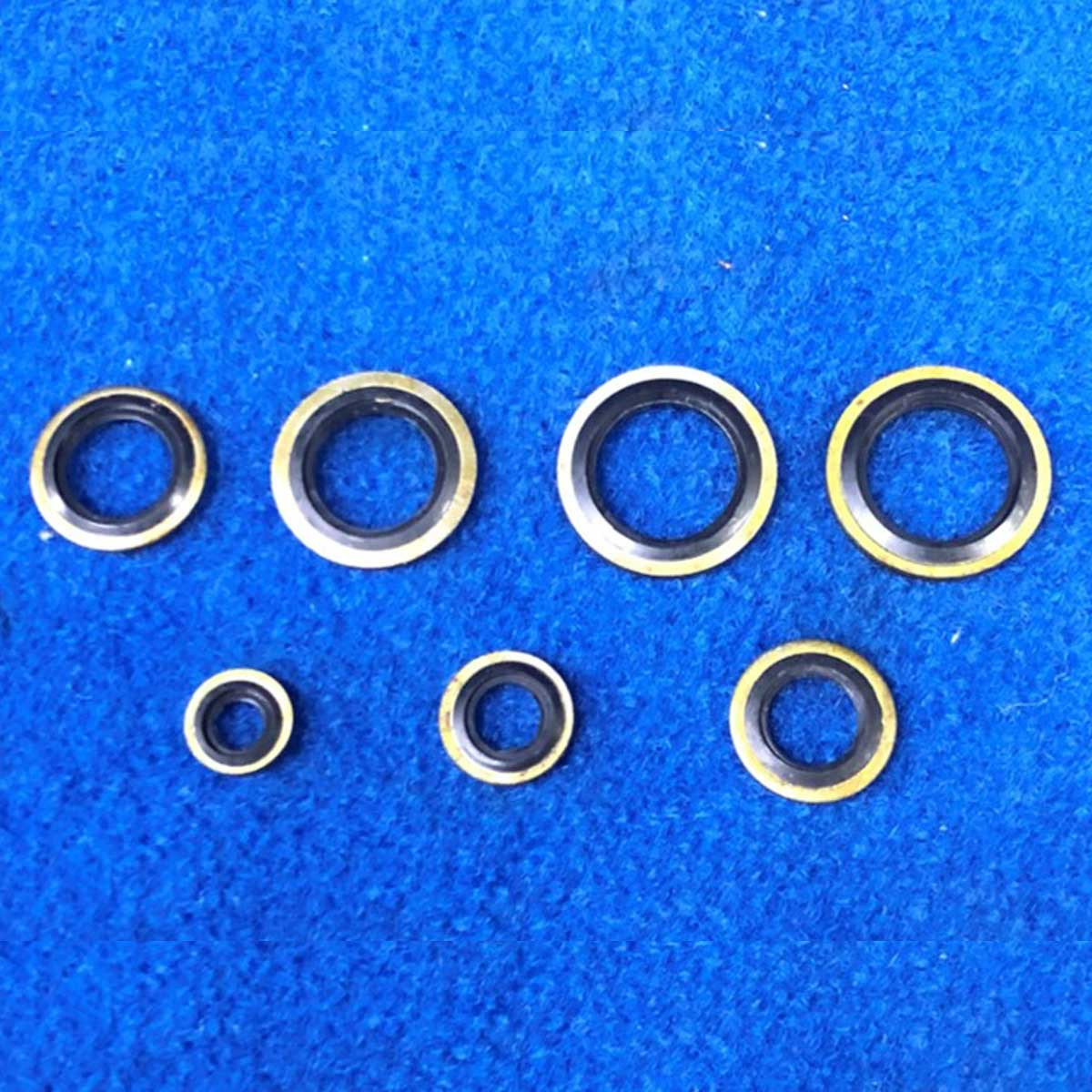

Dowty Bonded Seal Box Set (Metric M6/M8/M10/M12/M14/M16)
DS Set

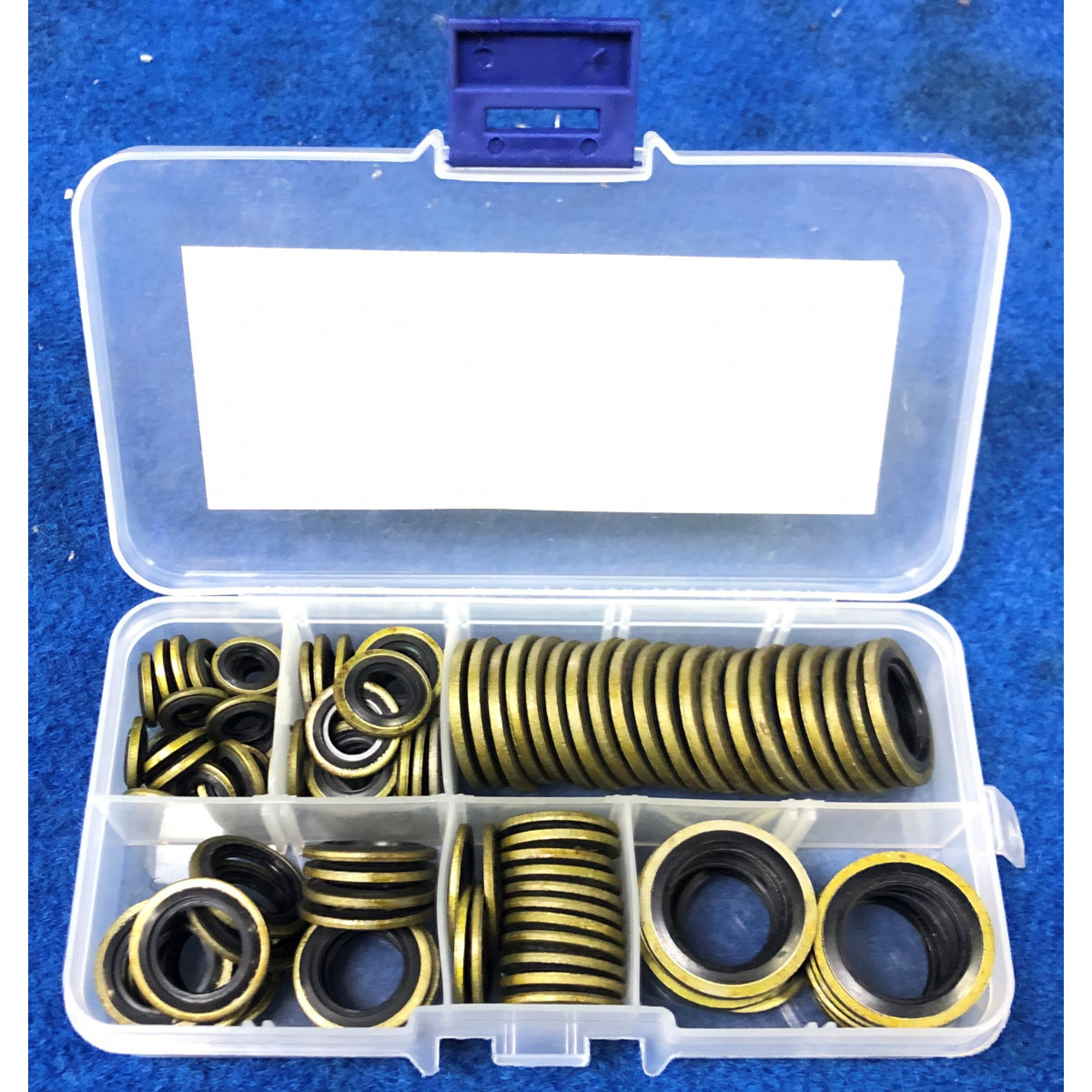

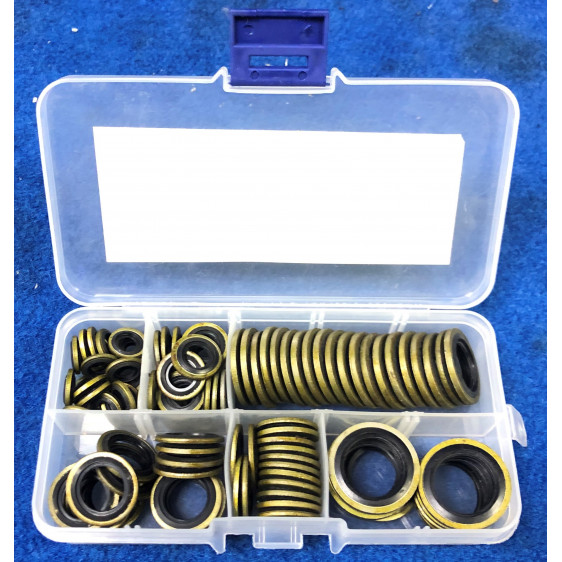

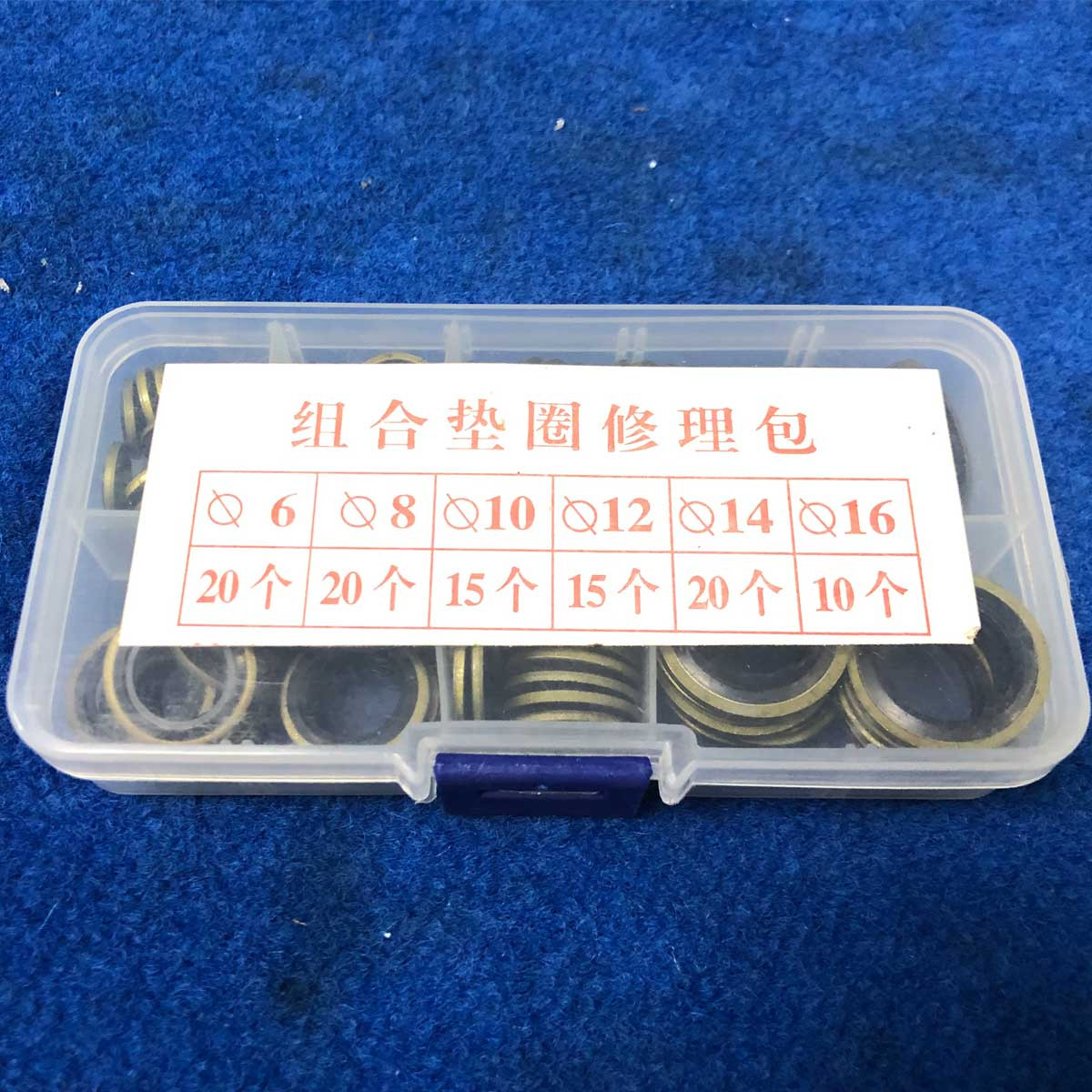

Dowty Bonded Seal Box Set (Metric Sizes only):
6mm x 20pcs
8mm x 20pcs
10mm x 15pcs
12mm x 15pcs
14mm x 20pcs
16mm x 10pcs
SGD 28.30
This is a box set item which is more value for money. Contains a range of sizes and quantity stated above. Only available for metric sizing.

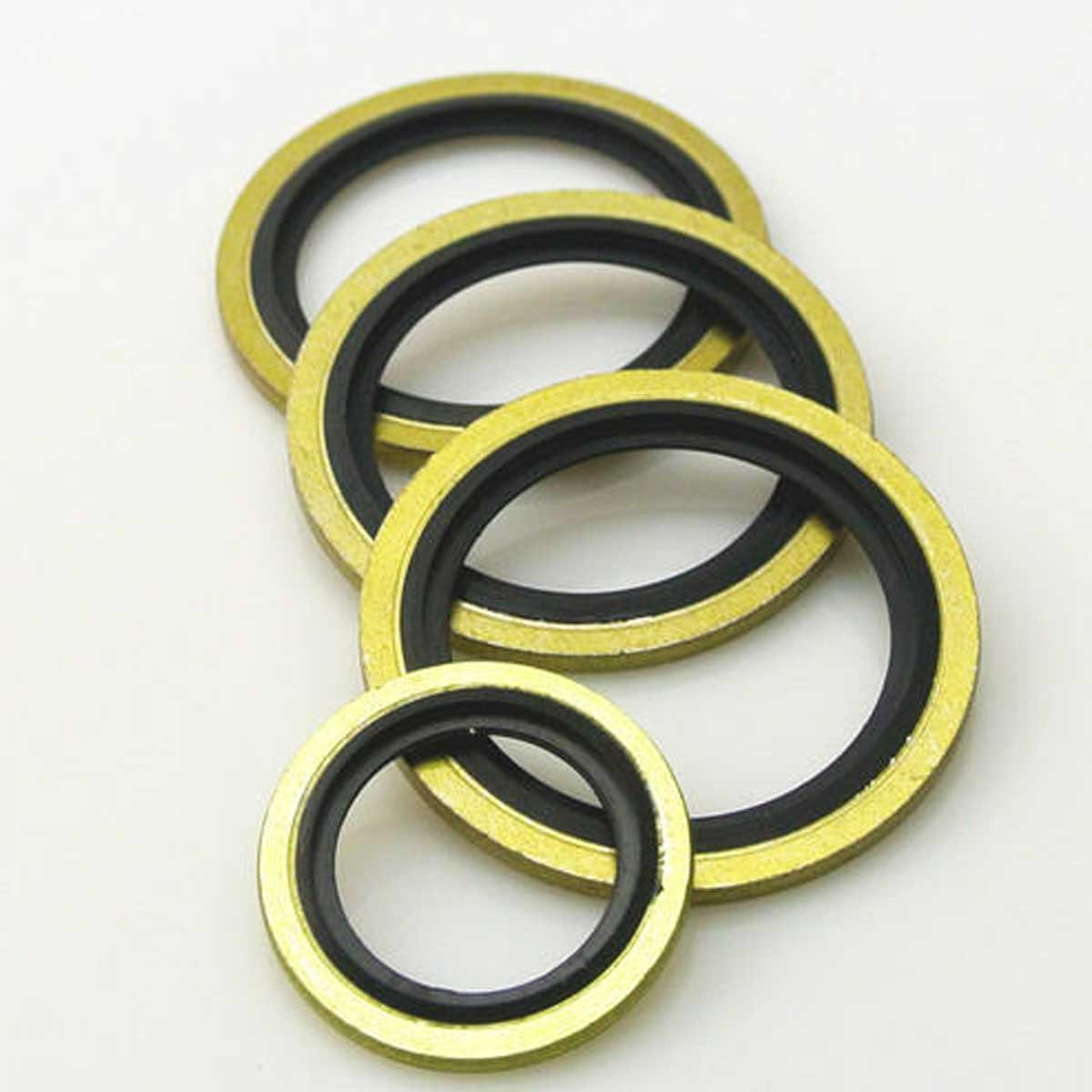

This Dowty Bonded Seal / Dowty Seal is a metal washer with a centre ring of rubber for usage in high pressure applications. The flexing action of the rubber under pressure gives a leak proof seal against wide range of fluids.
