Dowty Bonded Seal 9/16" UNF (Imperial Size)
DS 9/16" UNF

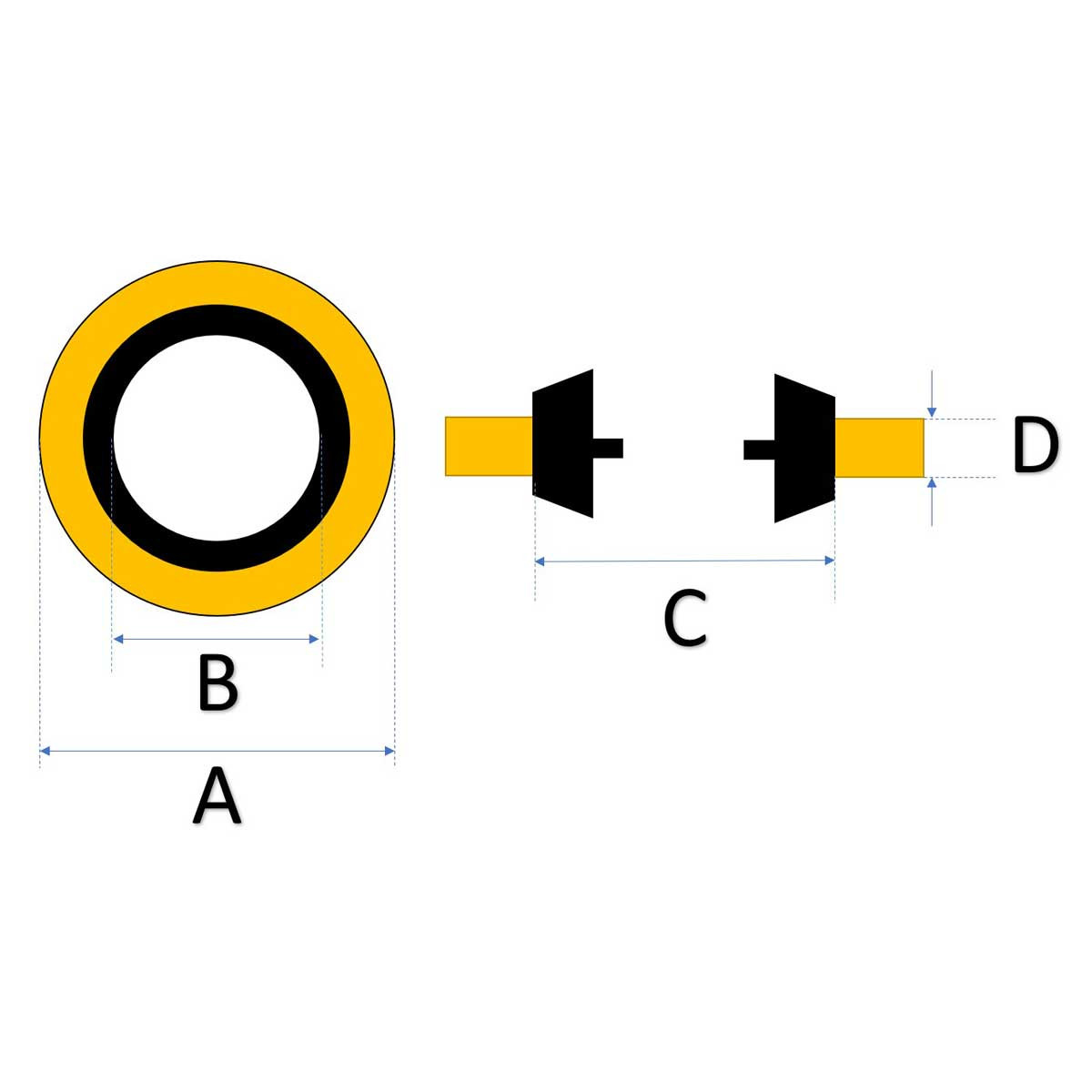

| Dimensions (mm) | |||
| O.D. | I.D. | Metal Washer I.D. | Metal Washer Thickness |
| A | B | C | D |
| 22.2 | 12.1 | 14.4 | 1.85 |
SGD 2.40

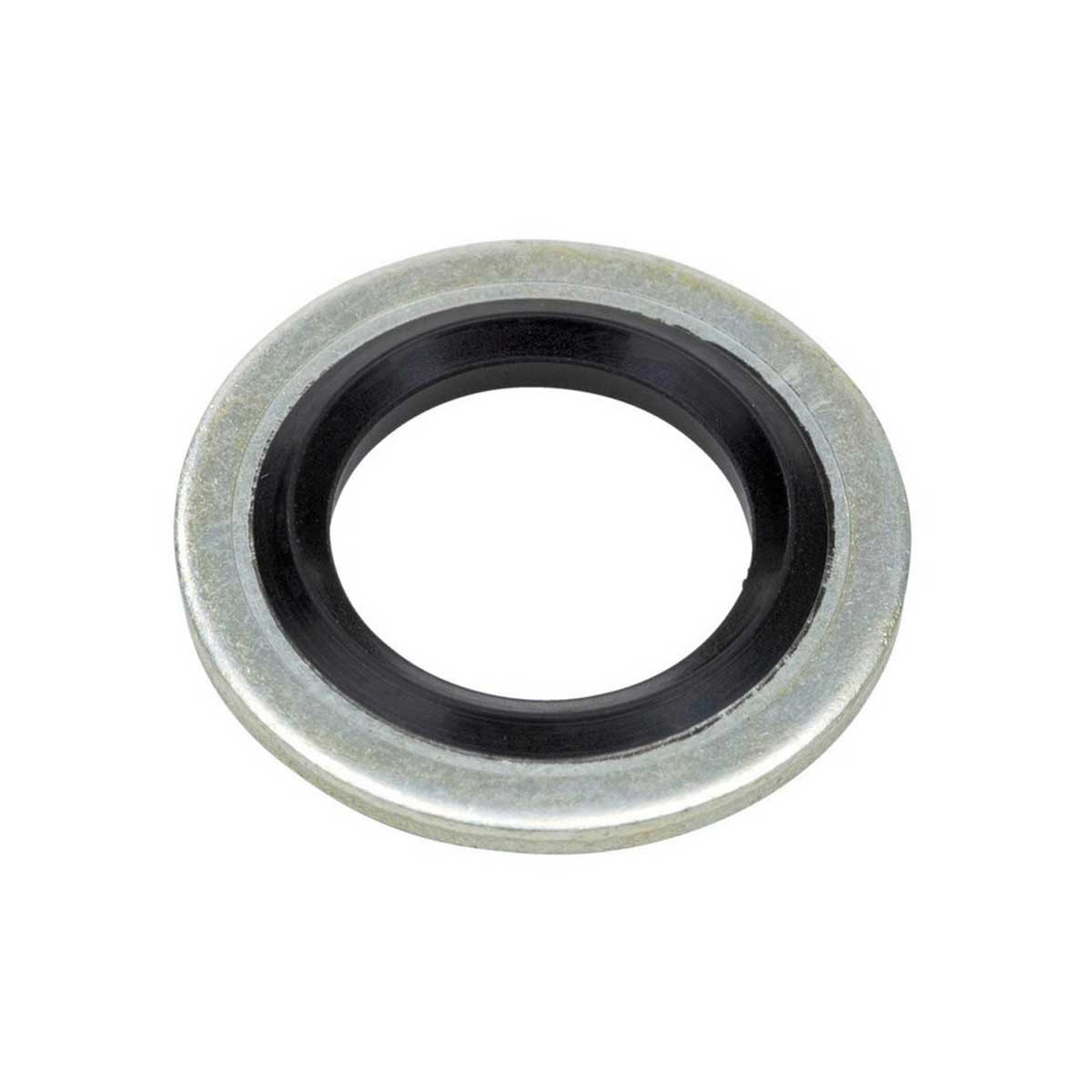

This Dowty Bonded Seal / Dowty Seal is a metal washer with a centre ring of rubber for usage in high pressure applications. The flexing action of the rubber under pressure gives a leak proof seal against wide range of fluids.
This item is suitable for Imperial Sizing (BSP/UNF/BSA) etc.
