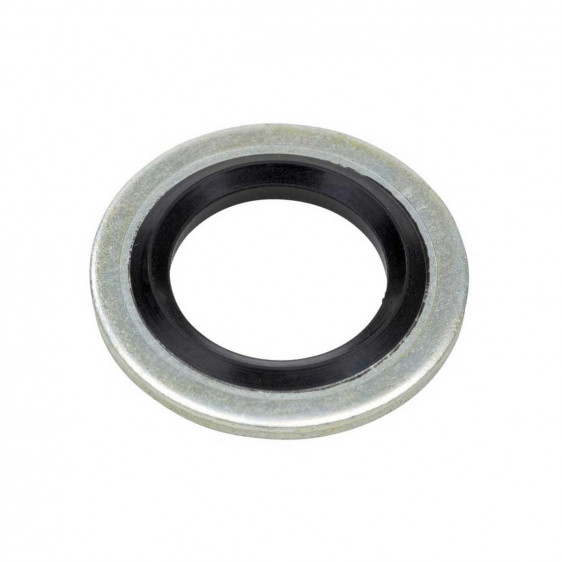

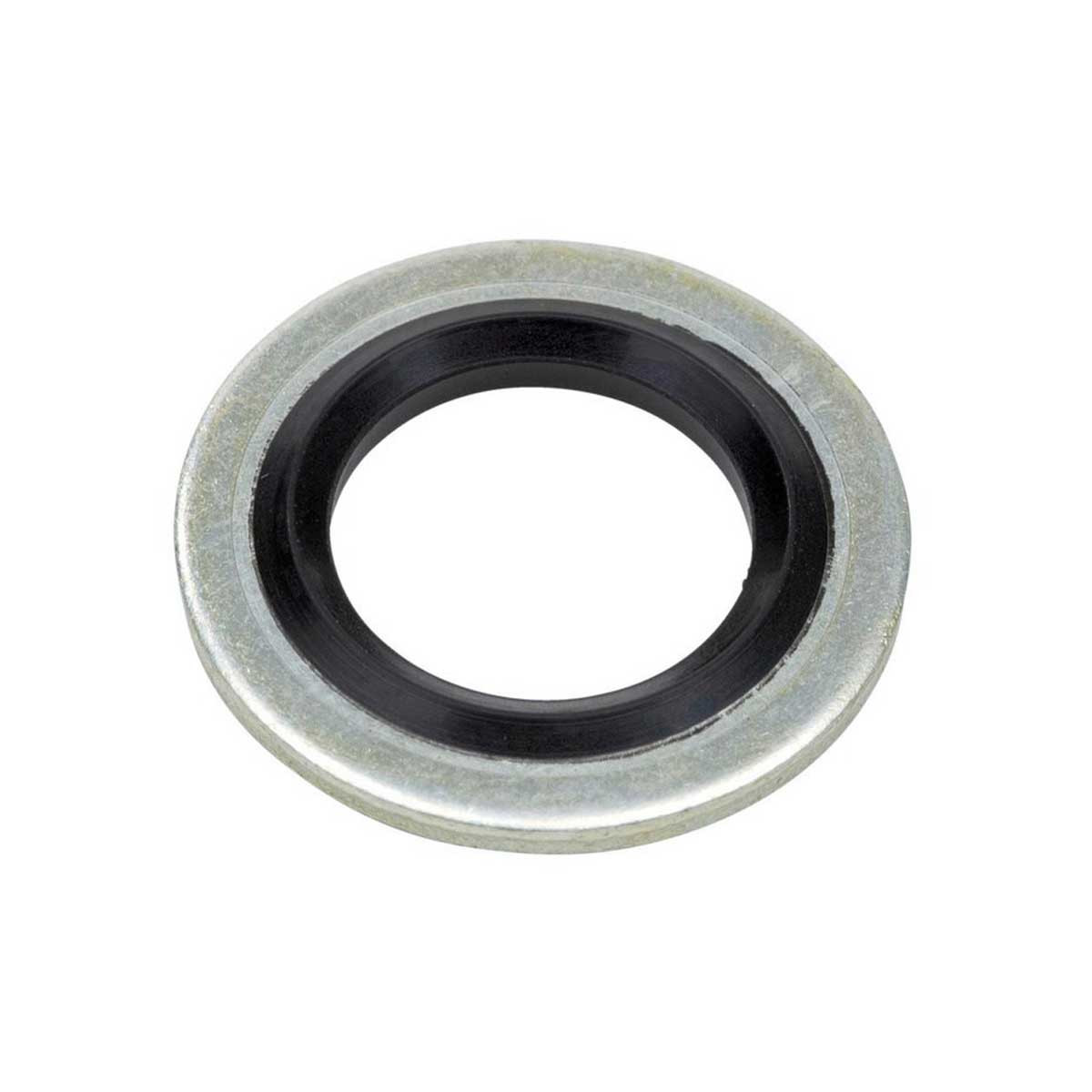

Dowty Bonded Seal 3/8" BSP (Imperial Size)
DS 3/8" BSP
| Dimensions (mm) | |||
| O.D. | I.D. | Metal Washer I.D. | Metal Washer Thickness |
| A | B | C | D |
| 23.8 | 17.4 | 19.8 | 2 |
SGD 2.60
This Dowty Bonded Seal / Dowty Seal is a metal washer with a centre ring of rubber for usage in high pressure applications. The flexing action of the rubber under pressure gives a leak proof seal against wide range of fluids.
This item is suitable for Imperial Sizing (BSP/UNF/BSA) etc.
