DS 1" BSP
SGD 3.90
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
42.7
29.7
33.8
2.5

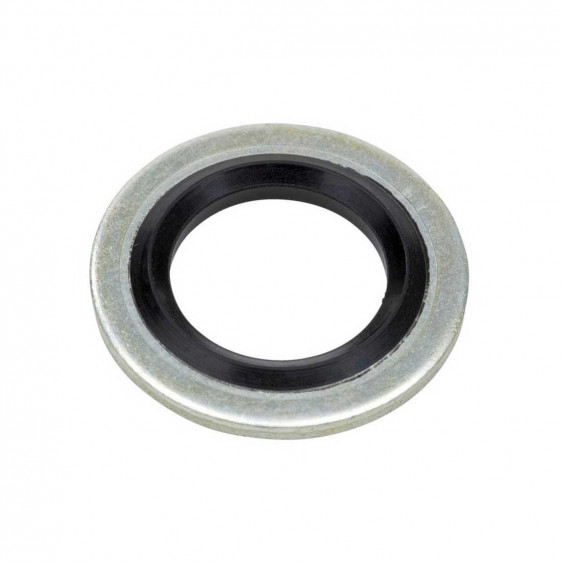

Dowty Bonded Seal 7/8" UNF (Imperial Size)
DS 7/8" BSP
| Dimensions (mm) | |||
| O.D. | I.D. | Metal Washer I.D. | Metal Washer Thickness |
| A | B | C | D |
| 31.8 | 23.5 | 25.4 | 2.35 |
SGD 3.30

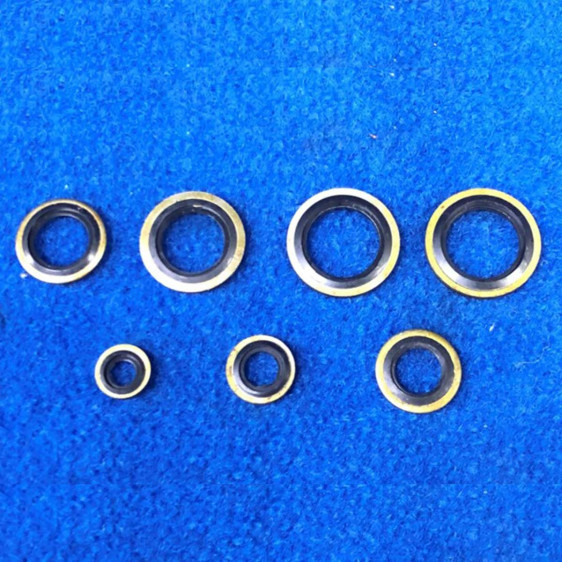

This Dowty Bonded Seal / Dowty Seal is a metal washer with a centre ring of rubber for usage in high pressure applications. The flexing action of the rubber under pressure gives a leak proof seal against wide range of fluids.
This item is suitable for Imperial Sizing (BSP/UNF/BSA) etc.
